Parent Layer: Storm Sewer

Name: Storm Manholes

Display Field: FACILITYID

Type: Feature Layer

Geometry Type: esriGeometryPoint

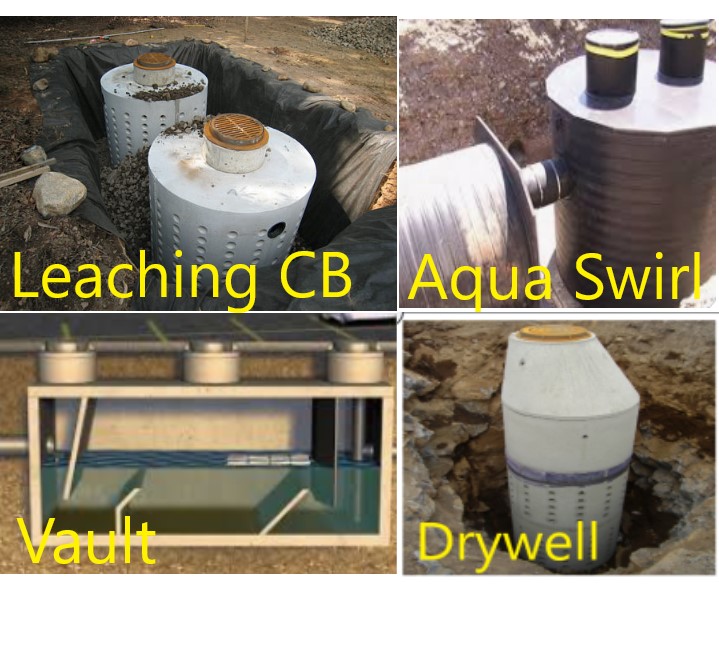

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Vault: larger square manhole that is poured and leaches storm runoff at its sides to the underground.</SPAN></P><P><SPAN>Standard: manhole with view to the storm system underground.</SPAN></P><P><SPAN>Aqua-Swirl: hydrodynamic separator to capture pollutants from surface water runoff.</SPAN></P><P><SPAN>Leaching Catch Basin: catch basin with holes at the bottom to let storm water leach into the ground.</SPAN></P><P><SPAN>Drywell: similar to a leaching catch basin, allows water to slowly soak into the ground to dissipate into groundwater.</SPAN></P><P><SPAN /></P><P><SPAN>Ownership clarification: </SPAN></P><P><SPAN>1. On county map: CCDC (drain commissioner) owns these</SPAN></P><P><SPAN>2. In ROW: Battle Creek owns</SPAN></P><P><SPAN>3. Outside of Battle Creek: Calhoun County owns</SPAN></P><P><SPAN>4. Private property: owner, except if it is draining to a pond Battle Creek maintains, then Battle Creek owns it. Check with Engineering Department</SPAN></P></DIV></DIV></DIV>

Copyright Text: Originally created by Woolpert Inc. in 1997. Edited by Battle Creek DPW Records Division.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 20000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -9495551.871861966
YMin: 5197901.71408581
XMax: -9477221.095470974
YMax: 5214821.361324878
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Subtype
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 2
  Label: Standard
  Description: N/A
  Symbol:

• Value: 1
  Label: Vault
  Description: N/A
  Symbol:

• Value: 5
  Label: Drywell
  Description: N/A
  Symbol:

• Value: 4
  Label: Leaching Basin
  Description: N/A
  Symbol:

• Value: 3
  Label: Aqua-Swirl
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: Subtype

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• FACILITYID ( type: esriFieldTypeString, alias: FACILITYID, length: 10 )
• GraniteXP_ID ( type: esriFieldTypeString, alias: GraniteXP_ID, length: 10 )
• EASTING ( type: esriFieldTypeDouble, alias: EASTING )
• NORTHING ( type: esriFieldTypeDouble, alias: NORTHING )
• MUNICIPALITY ( type: esriFieldTypeString, alias: MUNICIPALITY, length: 20 , Coded Values: [Bedford Township: Bedford Township] , [City of Battle Creek: City of Battle Creek] , [City of Springfield: City of Springfield] , ...7 more... )
• OWNERSHIP ( type: esriFieldTypeString, alias: OWNERSHIP, length: 50 , Coded Values: [Private: Private] , [City of Battle Creek: City of Battle Creek] , [Calhoun County Drain Commission: Calhoun County Drain Commission] , ...4 more... )
• GPS_Date ( type: esriFieldTypeDate, alias: GPS_Date, length: 8 )
• Verified ( type: esriFieldTypeString, alias: Verified, length: 8 , Coded Values: [N: No] , [Y: Yes] , [N/A: N/A] )
• DRAINS_TO ( type: esriFieldTypeString, alias: DRAINS_TO, length: 20 )
• DRAINAGE_DISTRICT ( type: esriFieldTypeString, alias: DRAINAGE_DISTRICT, length: 20 )
• SURFACE_ELEVATION ( type: esriFieldTypeDouble, alias: SURFACE_ELEVATION )
• YEAR_INSTALLED ( type: esriFieldTypeSmallInteger, alias: YEAR_INSTALLED )
• CONTRACTOR ( type: esriFieldTypeString, alias: CONTRACTOR, length: 20 , Coded Values: [City of Battle Creek: City of Battle Creek] , [Crest Construction: Crest Construction] , [Hoffman Brothers: Hoffman Brothers] , ...10 more... )
• DEPTH ( type: esriFieldTypeDouble, alias: DEPTH )
• CONDITION ( type: esriFieldTypeString, alias: CONDITION, length: 20 )
• COMMENTS ( type: esriFieldTypeString, alias: COMMENTS, length: 100 )
• COVER_TYPE ( type: esriFieldTypeString, alias: COVER_TYPE, length: 20 )
• SURFACE_COVER ( type: esriFieldTypeString, alias: SURFACE_COVER, length: 20 )
• RING_MATERIAL ( type: esriFieldTypeString, alias: RING_MATERIAL, length: 20 )
• CHANNEL_MATERIAL ( type: esriFieldTypeString, alias: CHANNEL_MATERIAL, length: 20 )
• COVER_DIAMETER ( type: esriFieldTypeDouble, alias: COVER_DIAMETER )
• WALL_MATERIAL ( type: esriFieldTypeString, alias: WALL_MATERIAL, length: 20 )
• BARREL_DIAMETER ( type: esriFieldTypeDouble, alias: BARREL_DIAMETER )
• BENCH_MATERIAL ( type: esriFieldTypeString, alias: BENCH_MATERIAL, length: 20 )
• DROP_MH ( type: esriFieldTypeString, alias: DROP_MH, length: 5 , Coded Values: [N: No] , [Y: Yes] , [N/A: N/A] )
• Duplicate ( type: esriFieldTypeSmallInteger, alias: Duplicate )
• Structure_Code ( type: esriFieldTypeString, alias: Structure_Code, length: 50 )
• PWTYPE ( type: esriFieldTypeString, alias: PWTYPE, length: 10 )
• Enabled ( type: esriFieldTypeSmallInteger, alias: Enabled , Coded Values: [0: False] , [1: True] )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• CreatedBy ( type: esriFieldTypeString, alias: Created By, length: 150 )
• CreatedByDate ( type: esriFieldTypeDate, alias: Created By Date, length: 8 )
• EditedBy ( type: esriFieldTypeString, alias: Edited By, length: 150 )
• EditedByDate ( type: esriFieldTypeDate, alias: Edited By Date, length: 8 )
• MaintainedBy ( type: esriFieldTypeString, alias: Maintained By, length: 75 , Coded Values: [Bedford Township: Bedford Township] , [City of Battle Creek: City of Battle Creek] , [City of Springfield: City of Springfield] , ...7 more... )
• Subtype ( type: esriFieldTypeSmallInteger, alias: Subtype )

Types:

ID: 1
Name: Vault
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• Verified:
  Inherited
• CONTRACTOR:
  Inherited
• DROP_MH:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 2
Name: Standard
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• Verified:
  Inherited
• CONTRACTOR:
  Inherited
• DROP_MH:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 3
Name: Aqua-Swirl
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• Verified:
  Inherited
• CONTRACTOR:
  Inherited
• DROP_MH:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 4
Name: Leaching Basin
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• Verified:
  Inherited
• CONTRACTOR:
  Inherited
• DROP_MH:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 5
Name: Drywell
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• Verified:
  Inherited
• CONTRACTOR:
  Inherited
• DROP_MH:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---
