Parent Layer: Storm Sewer

Name: Storm Fittings

Display Field: FACILITYID

Type: Feature Layer

Geometry Type: esriGeometryPoint

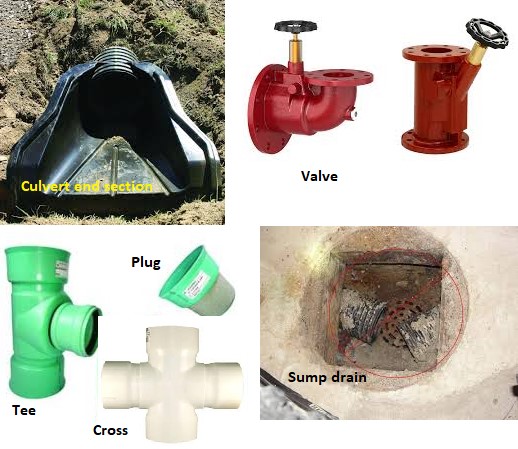

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>End section - can be flared attachment or unflared, at the end of a culvert.</SPAN></P><P><SPAN>Sump drain - drains water that it collects, may enter the rest of the storm system. </SPAN></P><P><SPAN>Cross - 4 way connection between storm main pipes. </SPAN></P><P><SPAN>Tee - 3 way connection between storm main pipes.</SPAN></P><P><SPAN>Stub/plug - method of capping the end of a section of pipe that is not to be used. May be involved in abandoning a pipe. </SPAN></P><P><SPAN>Valve - prevents backflow of stormwater</SPAN></P></DIV></DIV></DIV>

Copyright Text: Created and maintained by the City of Battle Creek DPW Records Division since 2005.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 20000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -9495262.779357156
YMin: 5197944.003000916
XMax: -9477118.5154015
YMax: 5214892.952182363
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: SUBTYPE
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 2
  Label: Valve
  Description: N/A
  Symbol:

• Value: 4
  Label: Cross
  Description: N/A
  Symbol:

• Value: 3
  Label: Tee
  Description: N/A
  Symbol:

• Value: 8
  Label: Bend
  Description: N/A
  Symbol:

• Value: 5
  Label: Sump Drain
  Description: N/A
  Symbol:

• Value: 6
  Label: End Section
  Description: N/A
  Symbol:

• Value: 1
  Label: Stub or Plug
  Description: N/A
  Symbol:

• Value: 7
  Label: Unknown
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: SUBTYPE

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• FACILITYID ( type: esriFieldTypeString, alias: FACILITYID, length: 10 )
• GraniteXP_ID ( type: esriFieldTypeString, alias: GraniteXP_ID, length: 10 )
• FEATURE ( type: esriFieldTypeString, alias: FEATURE, length: 10 )
• SUBTYPE ( type: esriFieldTypeSmallInteger, alias: SUBTYPE )
• EASTING ( type: esriFieldTypeDouble, alias: EASTING )
• NORTHING ( type: esriFieldTypeDouble, alias: NORTHING )
• MUNICIPALITY ( type: esriFieldTypeString, alias: MUNICIPALITY, length: 20 , Coded Values: [Bedford Township: Bedford Township] , [City of Battle Creek: City of Battle Creek] , [City of Springfield: City of Springfield] , ...7 more... )
• OWNERSHIP ( type: esriFieldTypeString, alias: OWNERSHIP, length: 50 , Coded Values: [Private: Private] , [City of Battle Creek: City of Battle Creek] , [Calhoun County Drain Commission: Calhoun County Drain Commission] , ...4 more... )
• GPS_Date ( type: esriFieldTypeDate, alias: GPS_Date, length: 8 )
• YEAR_INSTALLED ( type: esriFieldTypeSmallInteger, alias: YEAR_INSTALLED )
• CONTRACTOR ( type: esriFieldTypeString, alias: CONTRACTOR, length: 20 , Coded Values: [City of Battle Creek: City of Battle Creek] , [Crest Construction: Crest Construction] , [Hoffman Brothers: Hoffman Brothers] , ...10 more... )
• CONDITION ( type: esriFieldTypeString, alias: CONDITION, length: 20 )
• COMMENTS ( type: esriFieldTypeString, alias: COMMENTS, length: 100 )
• Duplicate ( type: esriFieldTypeInteger, alias: Duplicate )
• Structure_Code ( type: esriFieldTypeString, alias: Structure_Code, length: 50 )
• PWTYPE ( type: esriFieldTypeString, alias: PWTYPE, length: 10 )
• Enabled ( type: esriFieldTypeSmallInteger, alias: Enabled , Coded Values: [0: False] , [1: True] )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• CreatedBy ( type: esriFieldTypeString, alias: Created By, length: 150 )
• CreatedByDate ( type: esriFieldTypeDate, alias: Created By Date, length: 8 )
• EditedBy ( type: esriFieldTypeString, alias: Edited By, length: 150 )
• EditedByDate ( type: esriFieldTypeDate, alias: Edited By Date, length: 8 )
• MaintainedBy ( type: esriFieldTypeString, alias: Maintained By, length: 75 , Coded Values: [Bedford Township: Bedford Township] , [City of Battle Creek: City of Battle Creek] , [City of Springfield: City of Springfield] , ...7 more... )

Types:

ID: 1
Name: Stub or Plug
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• CONTRACTOR:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 2
Name: Valve
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• CONTRACTOR:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 4
Name: Cross
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• CONTRACTOR:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 5
Name: Sump Drain
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• CONTRACTOR:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 6
Name: End Section
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• CONTRACTOR:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 3
Name: Tee
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• CONTRACTOR:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 8
Name: Bend
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• CONTRACTOR:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

ID: 7
Name: Unknown
Domains:
• MUNICIPALITY:
  Inherited
• OWNERSHIP:
  Inherited
• CONTRACTOR:
  Inherited
• Enabled:
  Inherited
• MaintainedBy:
  Inherited

---

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
