View In:   ArcGIS.com Map

Name: Storm Mains

Display Field: FACILITYID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

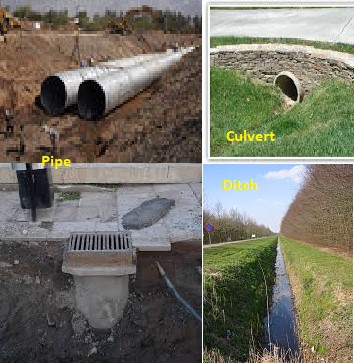

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Channel to divert storm water from the roadway and properties to an outfall or other storm structure. Drawn in the direction of stormwater flow.</SPAN></P><P><SPAN>Open ditch - open channel for water to flow through.</SPAN></P><P><SPAN>Culvert - allows water to flow under a road, railroad, trail, or similar obstruction from one side to the other. Does not drain into a Michigan-controlled waterway (outfall). Can have flared or unflared endsection (see storm fittings). </SPAN></P><P><SPAN>Pipe - enclosed channel made from a variety of options of material.</SPAN></P><P><SPAN /></P><P><SPAN>Ownership clarification: </SPAN></P><P><SPAN>1. On county map: CCDC (drain commissioner) owns these</SPAN></P><P><SPAN>2. In ROW: Battle Creek owns</SPAN></P><P><SPAN>3. Outside of Battle Creek: Calhoun County owns</SPAN></P><P><SPAN>4. Private property: owner, except if it is draining to a pond Battle Creek maintains, then Battle Creek owns it. Check with Engineering Department</SPAN></P></DIV></DIV></DIV>

Copyright Text: Originally created by Woolpert Inc. in 1997. Edited by Battle Creek DPW Records Division.

Default Visibility: true

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 20000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: -9495552.652133508
YMin: 5197892.0602673935
XMax: -9477118.072619531
YMax: 5214892.952182363
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 7
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementAboveAlong
Label Expression: [SIZE_LABEL]
Use Coded Values: true
Symbol:
Color: [255, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• FACILITYID ( type: esriFieldTypeString, alias: FACILITYID, editable: true, nullable: true, length: 12, defaultValue: null, modelName: FACILITYID )
• GraniteXP_ID ( type: esriFieldTypeString, alias: GraniteXP_ID, editable: true, nullable: true, length: 20, defaultValue: null, modelName: GraniteXP_ID )
• FEATURE ( type: esriFieldTypeString, alias: FEATURE, editable: true, nullable: true, length: 20, defaultValue: null, modelName: FEATURE , Coded Values: [PIPE: Pipe] , [OPEN DITCH: Open Ditch] , [CULVERT: Culvert] , ...2 more... )
• SIZE_LABEL ( type: esriFieldTypeString, alias: SIZE_LABEL, editable: true, nullable: true, length: 25, defaultValue: null, modelName: SIZE_LABEL )
• DIAMETER ( type: esriFieldTypeDouble, alias: DIAMETER, editable: true, nullable: true, defaultValue: null, modelName: DIAMETER )
• HEIGHT ( type: esriFieldTypeDouble, alias: HEIGHT, editable: true, nullable: true, defaultValue: null, modelName: HEIGHT )
• WIDTH ( type: esriFieldTypeDouble, alias: WIDTH, editable: true, nullable: true, defaultValue: null, modelName: WIDTH )
• DIMENSIONS ( type: esriFieldTypeString, alias: DIMENSIONS, editable: true, nullable: true, length: 12, defaultValue: null, modelName: DIMENSIONS )
• MATERIAL ( type: esriFieldTypeString, alias: MATERIAL, editable: true, nullable: true, length: 20, defaultValue: null, modelName: MATERIAL , Coded Values: [XXX: Not Known] , [AC: Asbestos Cement] , [BR: Brick] , ...23 more... )
• YEAR_INSTALLED ( type: esriFieldTypeSmallInteger, alias: YEAR_INSTALLED, editable: true, nullable: true, defaultValue: null, modelName: YEAR_INSTALLED )
• MUNICIPALITY ( type: esriFieldTypeString, alias: MUNICIPALITY, editable: true, nullable: true, length: 20, defaultValue: null, modelName: MUNICIPALITY , Coded Values: [Bedford Township: Bedford Township] , [City of Battle Creek: City of Battle Creek] , [City of Springfield: City of Springfield] , ...7 more... )
• Ownership ( type: esriFieldTypeString, alias: Ownership, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Ownership , Coded Values: [Private: Private] , [City of Battle Creek: City of Battle Creek] , [Calhoun County Drain Commission: Calhoun County Drain Commission] , ...4 more... )
• DRAINS_TO ( type: esriFieldTypeString, alias: DRAINS_TO, editable: true, nullable: true, length: 20, defaultValue: null, modelName: DRAINS_TO )
• UPSTREAM_MHID ( type: esriFieldTypeString, alias: UPSTREAM_MHID, editable: true, nullable: true, length: 20, defaultValue: null, modelName: UPSTREAM_MHID )
• DOWNSTREAM_MHID ( type: esriFieldTypeString, alias: DOWNSTREAM_MHID, editable: true, nullable: true, length: 20, defaultValue: null, modelName: DOWNSTREAM_MHID )
• PIPE_SHAPE ( type: esriFieldTypeString, alias: PIPE_SHAPE, editable: true, nullable: true, length: 20, defaultValue: null, modelName: PIPE_SHAPE , Coded Values: [A: Arched (with flat bottom)] , [B: Barrel (e.g. beer barrel shape)] , [C: Circular] , ...8 more... )
• SURFACE_TYPE ( type: esriFieldTypeString, alias: SURFACE_TYPE, editable: true, nullable: true, length: 20, defaultValue: null, modelName: SURFACE_TYPE )
• PLANNED_SLOPE ( type: esriFieldTypeDouble, alias: PLANNED_SLOPE, editable: true, nullable: true, defaultValue: null, modelName: PLANNED_SLOPE )
• RECORDED_LENGTH ( type: esriFieldTypeDouble, alias: RECORDED_LENGTH, editable: true, nullable: true, defaultValue: null, modelName: RECORDED_LENGTH )
• INFLOW_ELEVATION ( type: esriFieldTypeDouble, alias: INFLOW_ELEVATION, editable: true, nullable: true, defaultValue: null, modelName: INFLOW_ELEVATION )
• OUTFLOW_ELEVATION ( type: esriFieldTypeDouble, alias: OUTFLOW_ELEVATION, editable: true, nullable: true, defaultValue: null, modelName: OUTFLOW_ELEVATION )
• COMMENTS ( type: esriFieldTypeString, alias: COMMENTS, editable: true, nullable: true, length: 70, defaultValue: null, modelName: COMMENTS )
• CONDITION ( type: esriFieldTypeString, alias: CONDITION, editable: true, nullable: true, length: 20, defaultValue: null, modelName: CONDITION )
• Duplicate ( type: esriFieldTypeSmallInteger, alias: Duplicate, editable: true, nullable: true, defaultValue: null, modelName: Duplicate )
• Structure_Code ( type: esriFieldTypeString, alias: Structure_Code, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Structure_Code )
• US_STRUCT_ID ( type: esriFieldTypeString, alias: US_STRUCT_ID, editable: true, nullable: true, length: 50, defaultValue: null, modelName: US_STRUCT_ID )
• DS_STRUCT_ID ( type: esriFieldTypeString, alias: DS_STRUCT_ID, editable: true, nullable: true, length: 50, defaultValue: null, modelName: DS_STRUCT_ID )
• PWTYPE ( type: esriFieldTypeString, alias: PWTYPE, editable: true, nullable: true, length: 20, defaultValue: DPIPE, modelName: PWTYPE )
• Enabled ( type: esriFieldTypeSmallInteger, alias: Enabled, editable: true, nullable: true, defaultValue: 1, modelName: Enabled , Coded Values: [0: False] , [1: True] )
• Video_Date ( type: esriFieldTypeDate, alias: Video_Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: Video_Date )
• Video ( type: esriFieldTypeString, alias: Video, editable: true, nullable: true, length: 150, defaultValue: null, modelName: Video )
• VideoBy ( type: esriFieldTypeString, alias: VideoBy, editable: true, nullable: true, length: 50, defaultValue: null, modelName: VideoBy , Coded Values: [Perceptive Solutions: Perceptive Solutions] , [City of Battle Creek: City of Battle Creek] , [RedZone: RedZone] , ...3 more... )
• Video_Path ( type: esriFieldTypeString, alias: Video_Path, editable: true, nullable: true, length: 250, defaultValue: null, modelName: Video_Path )
• Video_Path2 ( type: esriFieldTypeString, alias: Video_Path2, editable: true, nullable: true, length: 250, defaultValue: null, modelName: Video_Path2 )
• CreatedBy ( type: esriFieldTypeString, alias: Created By, editable: false, nullable: true, length: 150, defaultValue: null, modelName: CreatedBy )
• CreatedByDate ( type: esriFieldTypeDate, alias: Created By Date, editable: false, nullable: true, length: 8, defaultValue: null, modelName: CreatedByDate )
• EditedBy ( type: esriFieldTypeString, alias: Edited By, editable: false, nullable: true, length: 150, defaultValue: null, modelName: EditedBy )
• EditedByDate ( type: esriFieldTypeDate, alias: Edited By Date, editable: false, nullable: true, length: 8, defaultValue: null, modelName: EditedByDate )
• MaintainedBy ( type: esriFieldTypeString, alias: Maintained By, editable: true, nullable: true, length: 75, defaultValue: null, modelName: MaintainedBy , Coded Values: [Bedford Township: Bedford Township] , [City of Battle Creek: City of Battle Creek] , [City of Springfield: City of Springfield] , ...7 more... )
• DrainageDistrict ( type: esriFieldTypeString, alias: Drainage District, editable: true, nullable: true, length: 50, defaultValue: null, modelName: DrainageDistrict )
• Video_Link ( type: esriFieldTypeString, alias: Video_Link, editable: true, nullable: true, length: 300, defaultValue: null, modelName: Video_Link )
• Shape__Length ( type: esriFieldTypeDouble, alias: Shape.len, editable: false, nullable: false, defaultValue: null, modelName: Shape.len )
• Asset_Length ( type: esriFieldTypeDouble, alias: Asset_Length, editable: true, nullable: true, defaultValue: null, modelName: Asset_Length )
• Struct_Grade ( type: esriFieldTypeSmallInteger, alias: Structural Grade, editable: true, nullable: true, defaultValue: null, modelName: Struct_Grade , Coded Values: [1: 1] , [2: 2] , [3: 3] , ...2 more... )
• OM_Grade ( type: esriFieldTypeSmallInteger, alias: O&M Grade, editable: true, nullable: true, defaultValue: null, modelName: OM_Grade , Coded Values: [1: 1] , [2: 2] , [3: 3] , ...2 more... )

Templates:

• Name: Storm Mains
  Description:
  Prototype:
  Struct_Grade: null
  FACILITYID: null
  GraniteXP_ID: null
  FEATURE: null
  SIZE_LABEL: null
  DIAMETER: null
  HEIGHT: null
  WIDTH: null
  DIMENSIONS: null
  MATERIAL: null
  YEAR_INSTALLED: null
  MUNICIPALITY: null
  Ownership: null
  DRAINS_TO: null
  UPSTREAM_MHID: null
  DOWNSTREAM_MHID: null
  PIPE_SHAPE: null
  SURFACE_TYPE: null
  PLANNED_SLOPE: null
  RECORDED_LENGTH: null
  INFLOW_ELEVATION: null
  OUTFLOW_ELEVATION: null
  COMMENTS: null
  CONDITION: null
  Duplicate: null
  Structure_Code: null
  US_STRUCT_ID: null
  DS_STRUCT_ID: null
  PWTYPE: DPIPE
  Enabled: 1
  Video_Date: null
  Video: null
  VideoBy: null
  Video_Path: null
  Video_Path2: null
  Asset_Length: null
  OM_Grade: null
  Video_Link: null
  DrainageDistrict: null
  MaintainedBy: null

  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query,Create,Update,Delete,Uploads,Editing

Sync Can Return Changes: false

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: false

Edit Fields Info:

• Creation Date Field: CreatedByDate
• Creator Field: CreatedBy
• Edit Date Field: EditedByDate
• Editor Field: EditedBy

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Apply Edits   Add Features   Update Features   Delete Features   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
